    Full Trailer
    ZA 1830/3

    Volume approx. 30 m3

    Spitzer Spitze

    Technical Facts

    • Total length
      approx. 8.250 mm
    • Length of vessel
      approx. 6.950 mm
    • Diameter of vessel
      approx. 2.550 mm
    • Distance middle of last axle to end of vehicle
      approx. 2.750 mm
    • Height unladen
      approx. 3.880 mm
    • Distance between the axles
      approx. 1.310 mm
    • Wheel base
      approx. 4.830 mm
    • Volume
      approx. 30 m3
    • Trailer total weight
      approx. 18 t
    • Full-Trailer axle load
      approx. 2 x 9 t
    • Trailer axle load
      approx. 3,5 t
    • Axle assembly
      2 x 9 t air suspended
    • Tyres
      385/65 R22,5 [4x]
    • Manholes
      DN 450 [2x]
    • Outlet system
      DN 800 [2x]
    • Chamber
      1
    • Operating temperature
      -40°C / +80°C
    • Operating / Test pressure
      2 bar

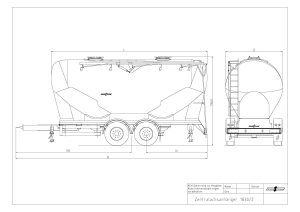

    Technical Drawing
