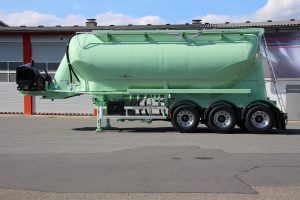

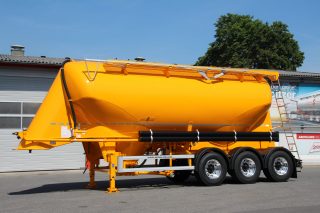

Non-Tipping type semi-trailer / P
SF 2734/2 P

Technical Facts

• Total length

  approx. 9.300 mm
• Diameter of vessel

  approx. 2.550 mm
• Height unladen

  approx. 3.950 mm
• 5th wheel height laden

  approx. 1.200 mm
• Front swing turning radius

  approx. 700 mm
• Rear swing turning radius

  approx. 2.000 mm
• Wheel base

  approx. 6.560 mm
• Distance between the axles

  approx. 1.310 mm
• Volume

  approx. 34 m³
• Chambers

  1
• Semi-trailer adm. total weight

  40 t
• Semi-trailer axle load

  27 t
• Semi-trailer tare weight

  ca. 4,25 t
• 5th wheel load

  13 t
• Axle assembly

  3 x 9 t air suspended
• Tyres

  385/65 – R22,5 [6x]
• Manholes

  DN 450 [2x]
• Outlet system

  DN 800 [2x]
• Operating temperature

  -40°C / +80°C
• Operating / Test pressure

  2 bar
