Truck mounted units
A26/3

Volume approx. 26 m3

Spitzer Spitze

Technical Facts

  • Total length
    approx. 6.700 mm
  • Diameter of vessel
    approx. 2.400 mm
  • Height above top of chassis frame
    approx. 2.900 mm
  • Volume
    approx.. 26 m3
  • Chambers
    1
  • Tare weight of vessel
    approx. 2,5 t
  • Manholes
    DN 450 [3x]
  • Outlet system
    DN 800 [3x]
  • Operating temperature
    -40°C / +80°C
  • Operating pressure
    2 bar

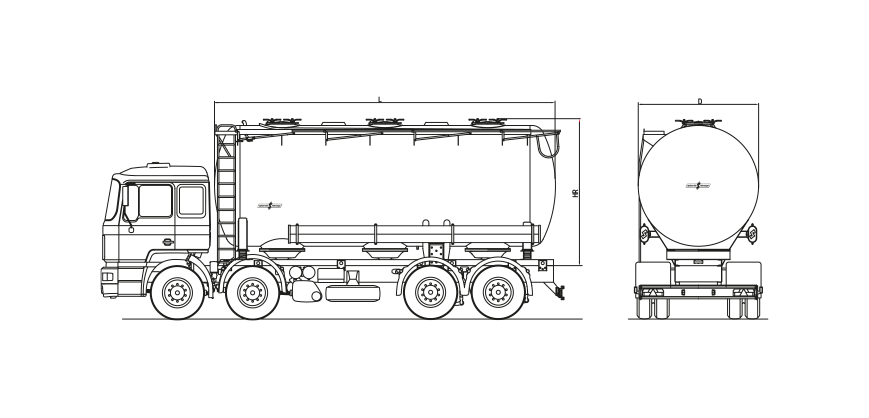

Technical Drawing

Contact Person

Our regional contacts will be happy to provide you with further information and answers to your questions about this model.
